Space science-Making a telescope-ray diagram

Ray diagrams

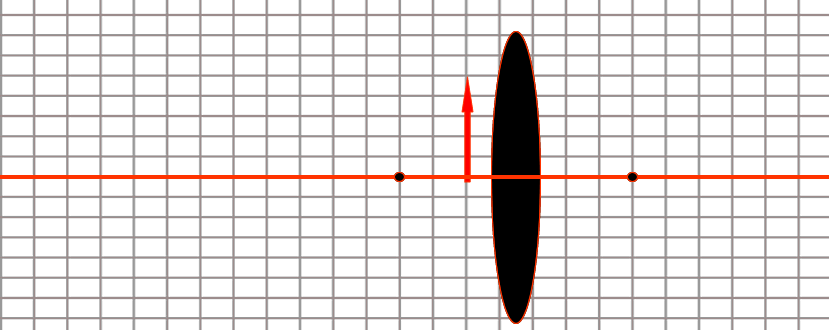

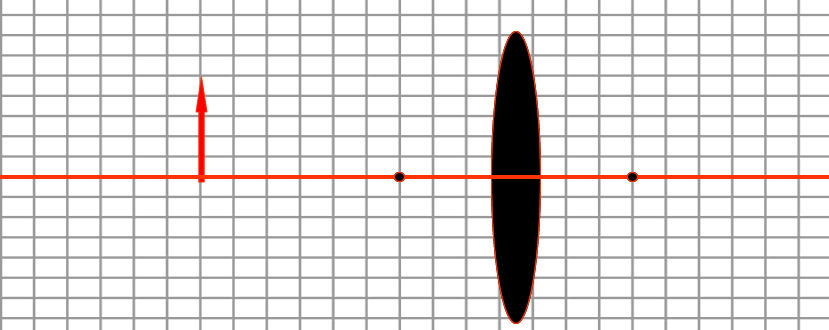

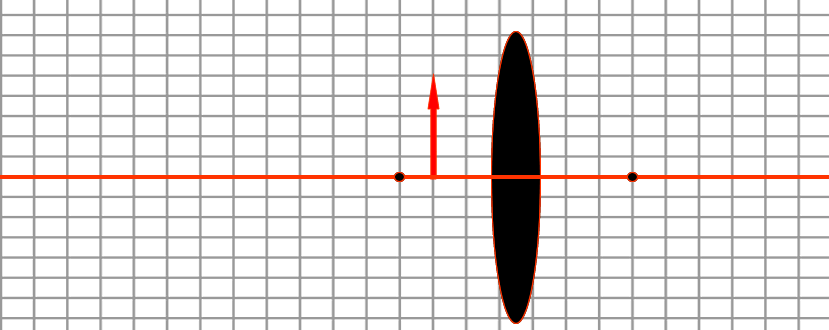

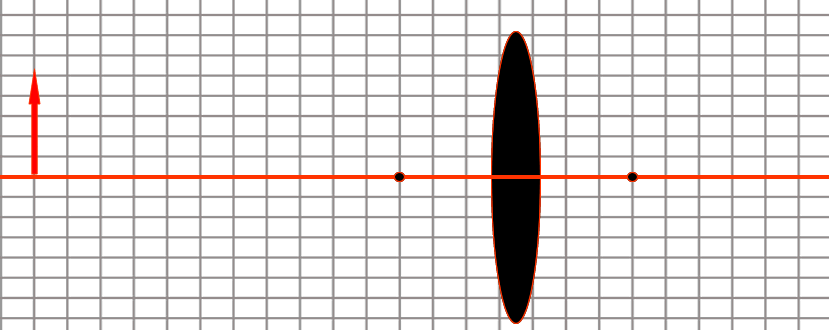

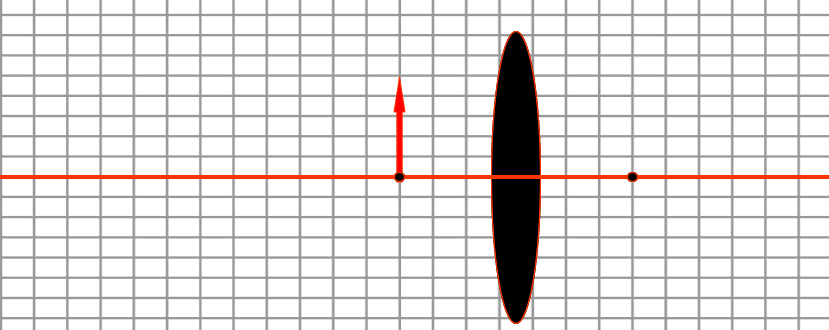

Print out the worksheet below and draw ray diagrams to locate the image. Label the image as real or virtual, magnified or diminished, upright or inverted.

Solution

Solution

Solution

Solution

Solution

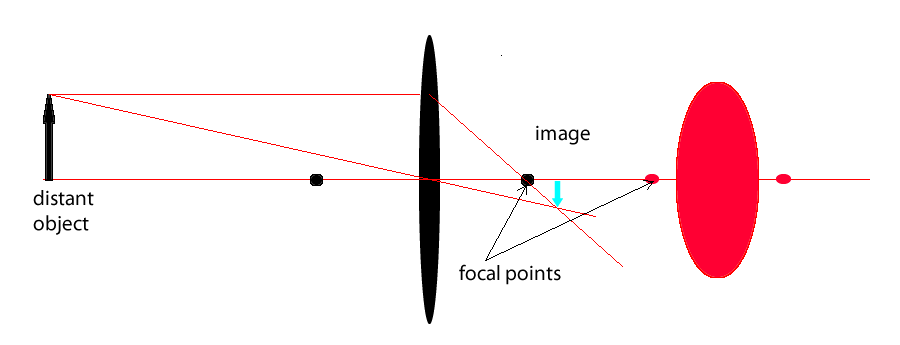

Using a ray diagram locate the image of the distant object as formed by the red lens. Solution
