Simple Machines-black box exercises with pulleys

Click to hide the solution

Black box with pulleys

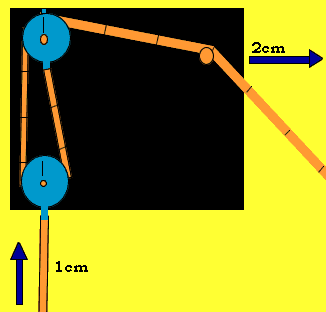

Describe a pulley system that allows the string on the right to be pulled through 10cms while the string at the bottom is pulled up 5cms.

Solution

Describe a pulley system that allows the string on the right to be pulled through 40cms while the string at the bottom is pulled up 10cms.

Solution
